square plate concrete floor grinder with vacuum

Product Item: 12T-G500/600/640/660/700

Product Manual：square plate concrete floor grinder with vacuum

SPECIFICATION

Model	12T-G500	12T-G600	12T-G640	12T-G660	12T-G700
Voltage	220V/380V	220V/380V	220V/380V	380V	380V
Motor	7.5KW	7.5KW	7.5KW	11kw	15kw
Inverter	7.5KW	7.5KW	11KW/7.5KW	15kw	15kw
working area	490mm	580mm	630mm	650mm	680mm
speed	0-1800rpm	0-1800rpm	0-1800rpm	0-1800rpm	0-2400rpm
disc quantity	12pcs	12pcs	12pcs	12pcs	12pcs
water tank	60L	60L	60L	80L	80L
weight	215kg	220kg	290kg	350kg	380kg

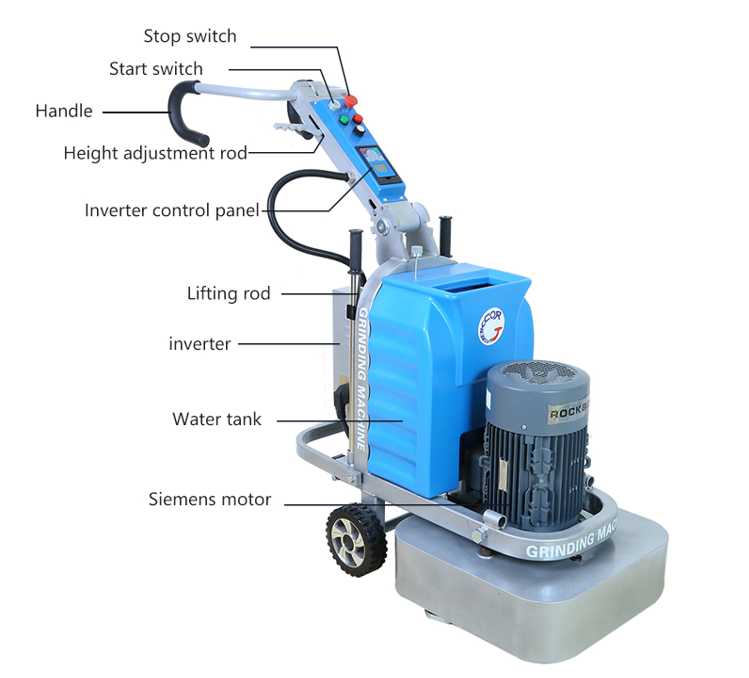

1. Specially processed gears and thicker bearings with upgrade generation and many similar machine in market is our original generation design
2.Control panel more simple with liquid crystal display
3.Adjustable handle for comfortable work and transportation
4.Famous Siemens motor and hpmont inverter, easy maintenance
5.Large capacity water tank made of strong plastic durable in use

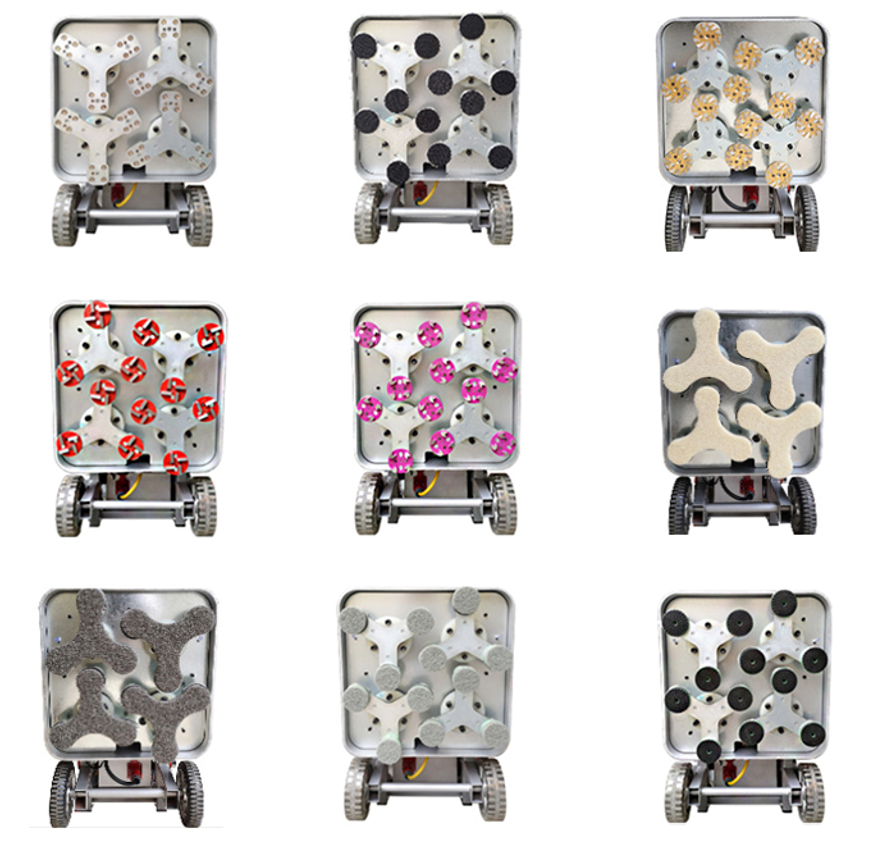

6.Can attach different metal and resin polishing pads
