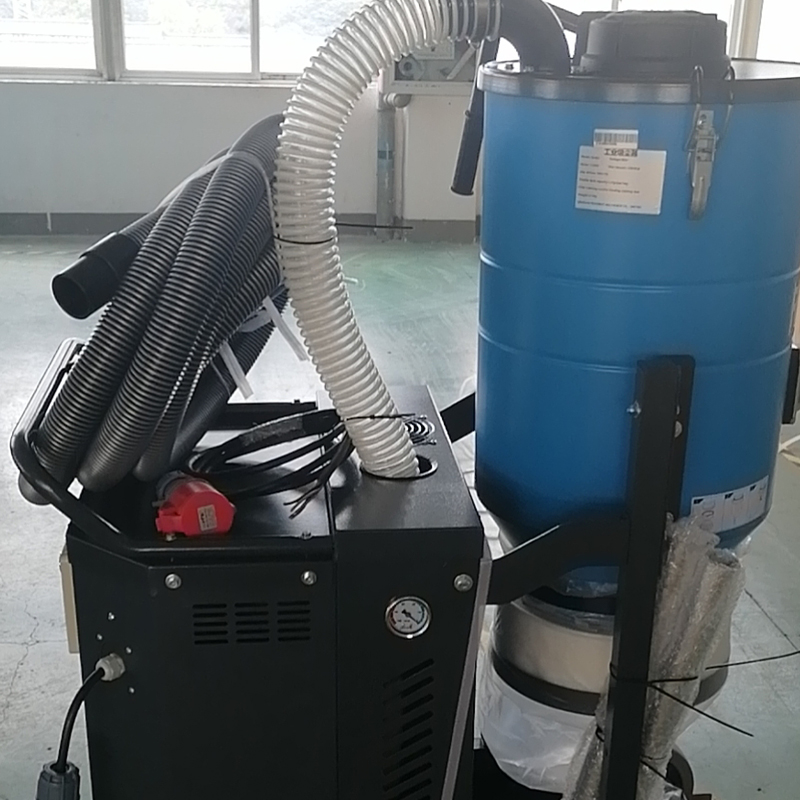

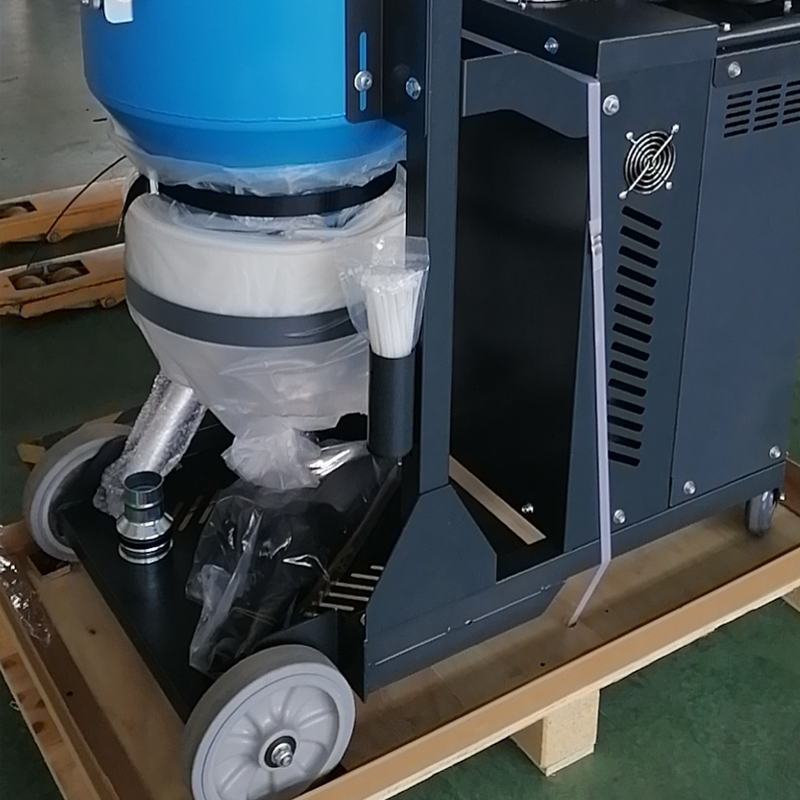

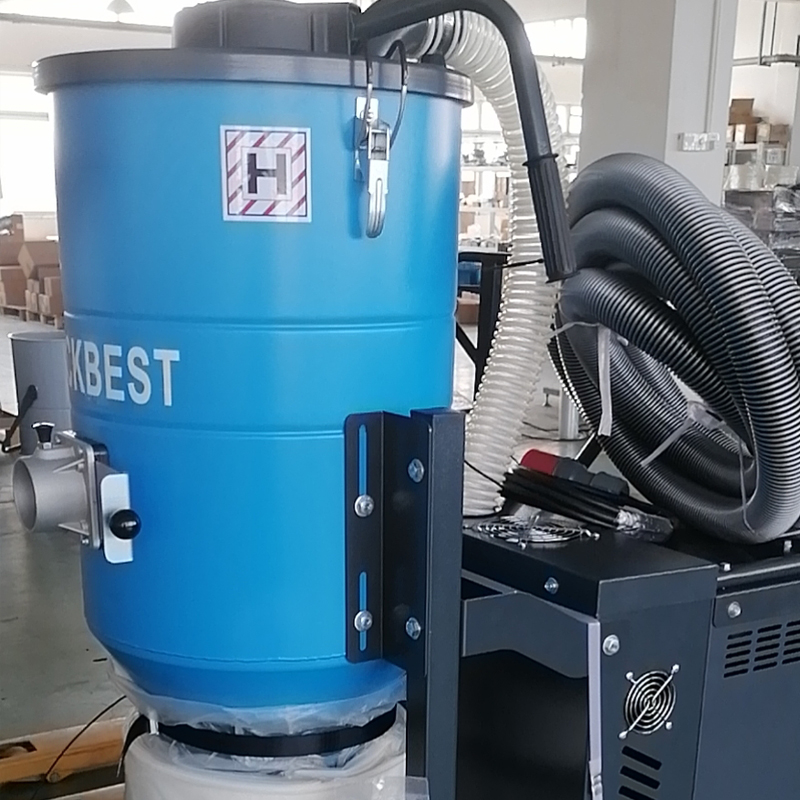

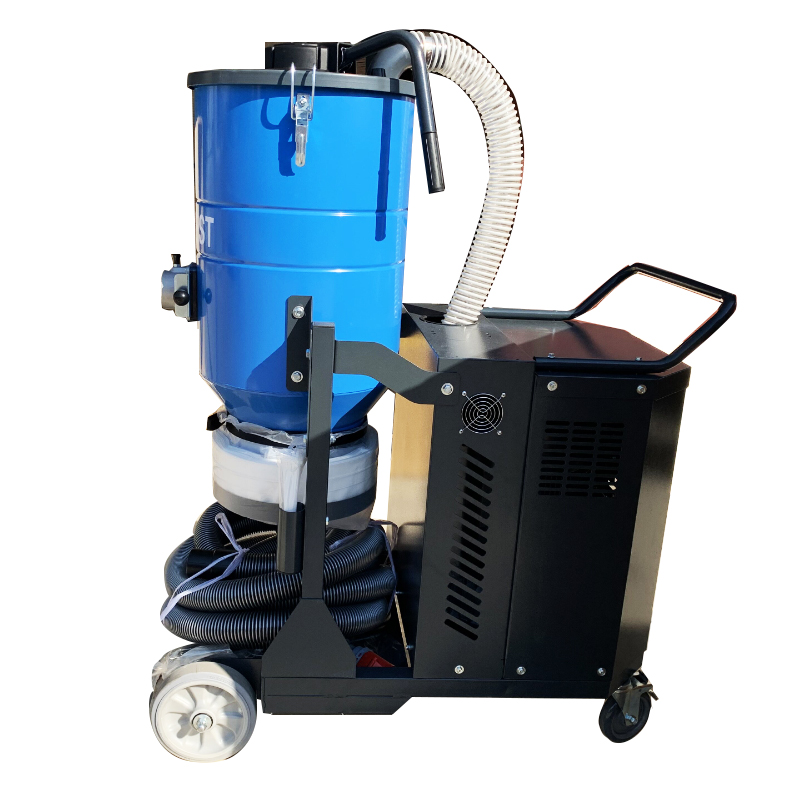

three phases industrial vacuum cleaner

Product Item: GV412/413

Product Manual：three phases industrial vacuum cleaner with 380v turbine motor

SPECIFICATION

Model	GV412	GV413
Voltage	380v 50hz	380v,50hz
Power	7.5kw	7.5kw
Vacuum(mbar)	320	320
Airflow(m3/h)	530	530
noise	70	70
Filter type	HEPA filter	HEPA filter
Filter cleaning	Jet pulse filter cleaning	automatic filter cleaning
Filter area(cm2)	30000	30000
Filter efficiency	0.3um>99.5%	0.3um>99.5%
Weight	169	173
dimension	65108145	65108145

The machine adapts high vacuum turbine motor and jet pulse filter cleaning system can work 24hours continuously, applies to large amount dust, small dust particle size working condition, specially used for floor grinding and polishing industry

1. Power system adopts high vacuum turbine motor wide voltage and double frequency, can work 24hours with long life time and low noise

2. All equipped with schneider electronic components, have overload, overheating, short circuit protection

3. Continous bag easy and fast loading and unloading

4. Imported polyester fiber PTFE coated HEPA filter, low pressure cost and high filter efficiency

5. Jet pulse cleaning system and automatic cleaning dust system, with air compressor as optional choice, applies to different working conditions.
